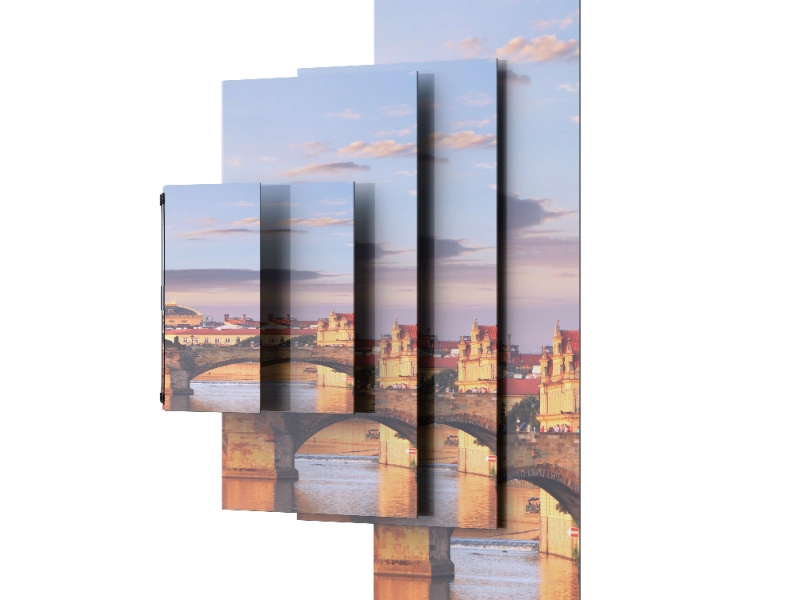

Premium BIPV Facade Panels | Colorful Solar Modules for Modern Buildings

Electrical Performance Parameters

Procatm Model

LAM1-T20

LAM1-T40

LAM2-T20

LAM2-T40

LAM3-T20

LAM3-T40

LAM4-T20

LAM4-T40

LAM5-T20

LAM5-T40

LAM4-T50

Norminal Power

84W

63W

160W

120W

360W

270W

323W

242W

480W

360W

300W

Voc

116.0V

116.0V

116.0V

116.0V

184.0V

184.0V

116.0V

116.0V

116.0V

116.0V

116.0V

Isc

1.11A

0.83A

2.12A

1.59A

2.9A

2.2A

4.27A

3.2A

6.34A

4.75A

3.96A

Vm

86.37V

86.37V

86.37V

86.37V

143.8V

143.8V

86.37V

86.37V

86.37V

86.37V

86.37V

Im

0.98A

0.73A

1.86A

1.4A

2.50A

1.90A

3.74A

2.81A

5.56A

4.17A

3.48A

Transmittance

20%

40%

20%

40%

20%

40%

20%

40%

20%

40%

50%

Dimension

L1200*W600*D7mm

L1200*W1200*D16mm

L1215*W2300*D16mm

L1200*W2400*D18mm

L1200*W3600*D16mm

Composition & Weight

3.2+0.72pvb+3.2mm

12kg

5+1.52pvb+3.2+1.52pvb +5mm  52kg

5+1.52pvb+3.2+1.52pvb +5mm  101.6kg

6+1.52pvb+3.2+1.52pvb +6mm  119kg

6+1.52pvb+3.2+1.52pvb+6+12A

+6mm  255kg

Power Temperature Coefficient

-0.214% / °C

Voltage Temperature Coefficient

-0.321% / °C

Current Temperature Coefficient

0.060% / °C

Test Conditions

STC:1000W/m2, AM1.5, 25°C
