    Solar Backpack

    30W Solar Backpack

    Backpack Charging Principle:

    The solar panel absorbs solar energy and converts it into electrical energy. Then, through the built-in junction box, it connects to the charging circuit to charge devices. It is compatible with most devices equipped with USB and Type-C interfaces, such as smartphones, tablets, power banks, etc.- Multi-functional compartments: large-capacity layer, laptop layer, toiletries layer, side pocket.

    • Capacity

      30L

    • Weight

      1.5kg

    • Rated Power

      30W（+/-5W）

    • Dimension

      330*220*445mm

    • Output Port

      USB-A丨Type-C

    • Fabric Material

      Woven Oxford Cloth + Nylon

    Inquire Now

    Download

    Share:

    Product Features

    • 01

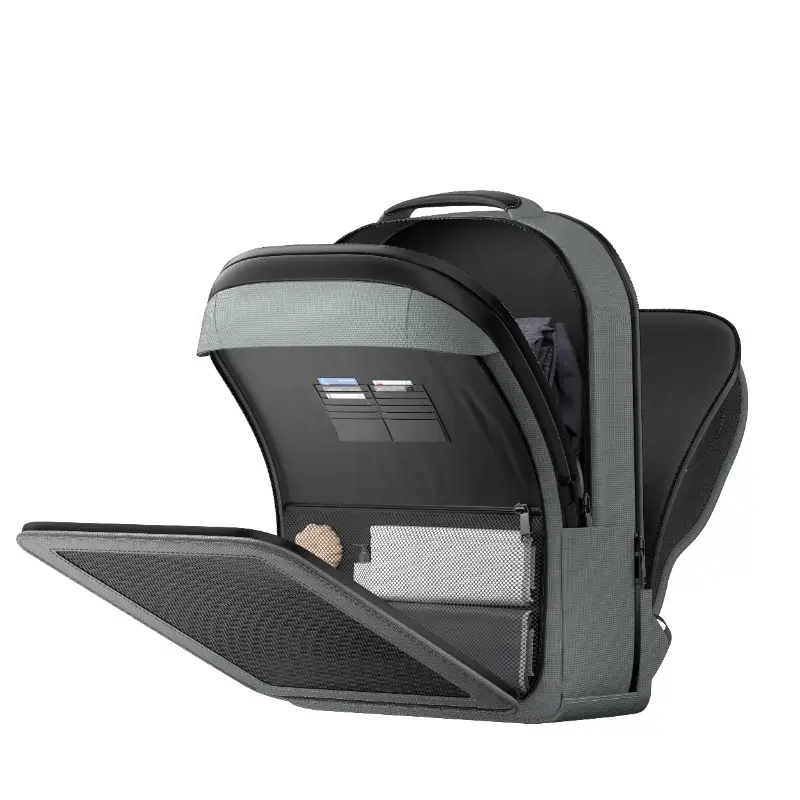

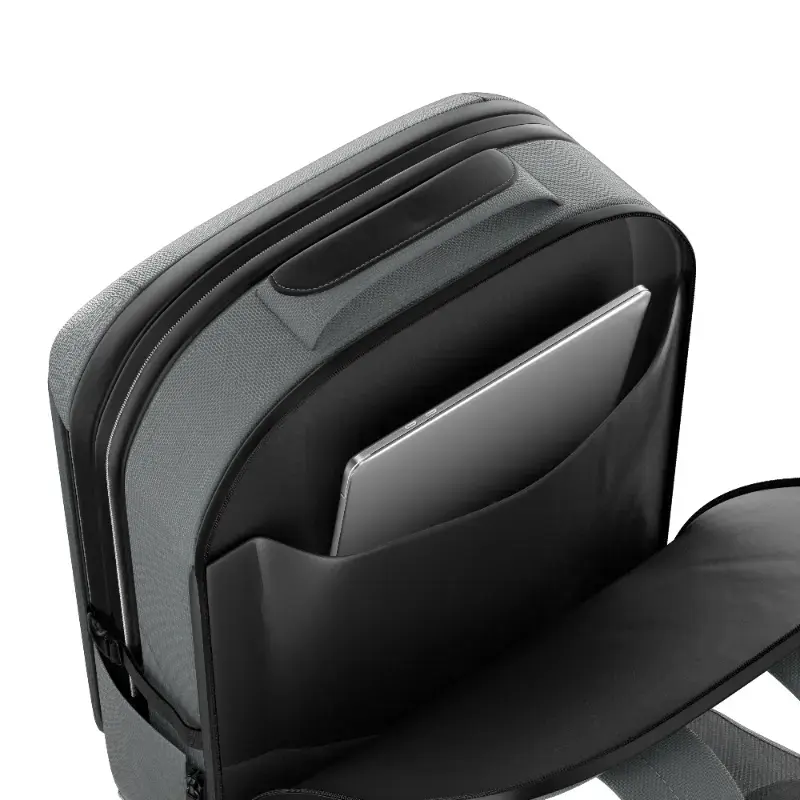

      Multi-functional compartments：large-capacity layer, laptop layer, toiletries layer, side pocket

    • 02

      Dual fast-charging ports:USB-A（22.5W MAX）；Type-C(15W MAX)

    Describe

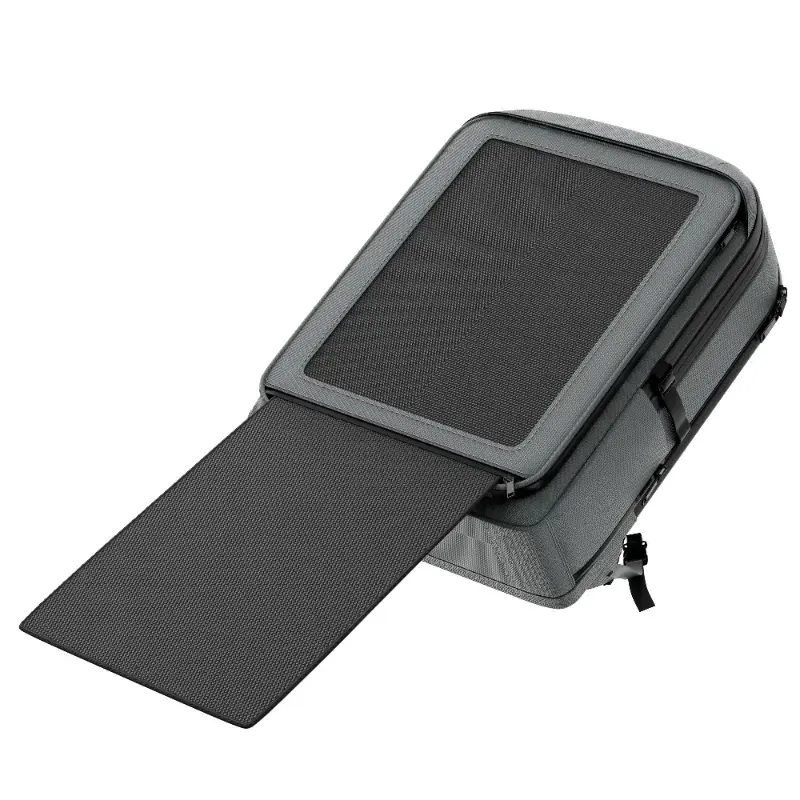

    Flexible Solar Panels:

    Utilizing the latest proprietary technology and new encapsulation process, these solar panels are 40% lighter than traditional cells. They are more flexible, thinner, and have a lower risk of microcracks.

    High-Efficiency Cells:

    Employing high-efficiency IBC cells, these panels offer higher conversion efficiency and excellent reflection performance.

    Furthermore, this product boasts a more aesthetically pleasing appearance, enhanced system safety, and superior weather resistance.

    Project

    Application Scenarios

    Our aim is to serve the global market through localized production and a global supply chain, helping customers achieve their carbon reduction goals.

    FAQ

    • What is the actual output capability of DS-37W’s USB ports?

      DS-37W has USB-A (QC 18W) and USB-C (PD 18W) interfaces, but its junction-box specification lists a maximum output of 18W. Therefore, do not add 18W + 18W and claim 36W simultaneous delivery. It is a 37W-rated panel with an 18W-rated USB power-conversion stage; validate simultaneous-load behaviour and supported charging profiles on the production sample.

    • Do the folding panels carry an established IP rating and warranty?

      ETFE surfaces are specified, but no verified IP rating or continuous-rain exposure claim is stated in these brochures. Do not represent them as fully waterproof; protect connectors and junction boxes from water ingress. The datasheets specify a 1-year product warranty for DS-37W, DS-100W and DS-200W; the full warranty terms and any Australian statutory obligations need to be addressed separately.

    • What distinguishes PT-B-13W from PT-B-30W beyond panel wattage?

      Both are specified as 30 L backpacks, but their construction differs. PT-B-13W weighs 1.26 kg, uses 1680D polyester/ABS with a 420D nylon lining and includes a TSA007-style lock. PT-B-30W weighs 1.6 kg, has three storage compartments and uses a 1680D polyester exterior with a 320D polyester lining. The 30W model has a dual-panel configuration, while a 15W single-panel variant is also shown.

    • Is the PT-B-30W backpack always a 30W version?

      No. The sheet differentiates a 15W single-panel arrangement from a 30W dual-panel arrangement. Quotes, samples, labels, product images and cartons should explicitly identify which assembly is being purchased. A customer specifying “PT-B-30W” should not be sent a single-panel sample without agreement.

    • What can be delivered through each backpack’s USB outputs?

      PT-B-13W lists USB-A and USB-C at 5V/2A (10W per port rating). PT-B-30W lists USB-A QC3.0 up to 22.5W and USB-C at 5V/3A (15W). These are interface ratings, not a promise that both ports can deliver their individual maxima together under sunlight. Total simultaneous output, protocol profiles and low-light restart performance require sample testing.

    • Can the backpacks charge devices after sunset?

      No integrated energy-storage battery is specified in either backpack datasheet. Their solar panels provide power when adequate light is available; an external power bank would be needed for stored-energy use. If a buyer requests a built-in battery version, battery capacity, transport classification, electrical tests, mass and price must all be re-evaluated.

    • Are the backpacks rainproof, theft-proof or airline-approved?

      The fabrics and a TSA007 lock (13W model only) are specified, but water-ingress ratings, anti-theft test performance and airline/security endorsements are not substantiated. Avoid “waterproof”, “theft-proof” or “airline-approved” claims without documented evidence. For channel listings, agree a precise claims-and-test matrix first.
